MartinB

LRGB imaging primer

Recommended Posts

Many people feel a bit daunted by LRGB imaging prefering the apparent simplicity of one shot colour imaging. This is a great shame since LRGB has some significant benefits - greater sensitivity, resolution not affected by a bayer matrix, more suited to narrow band imaging and an ability to do an unbinned luminence for detail and binned colour images. With this primer I am hoping to take some of the mystery out of LRGB and demonstrate the routines I have picked up which seem to work pretty well.

Notes on image capture

Filters

If your light pollution is quite low then a simple IR block filter is all you need for luminence. If light pollution is severely restricting your exposure time by producing excessive sky glow then use a light pollution filter - a CLS filter is a good choice and blocks IR. The trouble with light pollution filters is that the do require increased exposure time so only use if really necessary. My light pollution is significantly worse to the east then the west. If I am imaging near the zenith or to the west I can manage with just an IR blocking filter.

Choice of filters can be as complex an issue as you want to make it, and as expensive as well. I have found the series 2 Astronomik LRGB filter set to give good performance. They are also very tough and stand up to vigorous cleaning very well. Baader make a significantly cheaper set which represents good value for money. They let through marginally less light so may require slightly longer exposures. I don't know how tough they are compared with Astronomik.

Filter wheels

My first LRGB images were using a fastar system which meant I had to change filters manually. This is a real pain, the camera inevitably has a slightly different rotation on each image and getting condensation on the filters is another problem. The situation is much improved by use of a manual filter wheel, so long as you can remember which filter you have put where and which way to move the wheel! A motorised filter wheel seems like a rather extravagant expense but transforms LRGB capture into every bit as simple a procedure as using a one shot colour camera. The great advantage of a motorised wheel is that you can set up an image sequence which builds up your LRGB image as the session goes on rather than doing all the luminence, then the red, then green, then blue. No longer do you have to say, "will capture some RGB on the next clear night" Atik have now produced a motorised wheel for around £160 which will soon have a bolt on which will give USB connectivity. The total price is likely to be under £200. This might sound a lot but is a major undercutting of the price of currently available wheels.

Having said all that, you can get by quite happily with a manual wheel!

Exposure times

Many people believe that the luminance component is the most important so should be given the most time. The problem with this is that if the colour channels are given less exposure than the luminance colour saturation is poor leading to watery images. You can get around this by boosting colour saturation during processing but this introduces a lot of noise into the image. To avoid this each colour channel must be given as much exposure as the luminence. This sounds horrendous, an hour of luminence potentially needs 4 hours to become an RGB, no wonder people advocate one shot colour!. Fortunately we can bin the colour channels. By combining pixels into blocks of 4 (2x2 binning) we quadruple the chips sensitivity at the expense of reducing resolution. So a 1 hour luminence now requires a total of 45 minutes to make an acceptable LRGB. Better still, addition of the colour data actually improves the signal to noise ratio. The RGB image adds colour hue and saturation to the luminence. It isn't adding detail so the reduced resolution isn't an issue.

Chips vary in their sensitivity to different colours, filters have there own transmission characteristics as do scope optics. Colour transmission is also affected by the atmosphere with blue being scattered more low down than near the zenith. Each imaging system will tend to produce it's own individual colour cast. When starting off it is quite reasonable to use the same exposure times for R G and B. The problem with this approach is that you will find that you have to tone down one colour and boost another, typically blue needs a boost. This increases noise and is inefficient since you are wasting exposure time in the most sensitive channel. This is also an issue with one shot colour but with LRGB we can do something about it. As you learn the characteristics of your set up you will get a feel for how much you need to adjust the colour channels to deliver a balanced result. Knowing this you can set different exposure times for each colour. My ratio is G:R:B 1 : 1 :1 : 1.4.

The "proper" way to work out the correct ratio is to image a G2V star (same colour profile as the sun) and work out what corrections are needed to make it white. Well, when I move to Arizona and have all the clear nights I can handle I'll get on and do that. An alternative is to take an LRGB daytime image through the scope you are using and use your eyes to judge the correct colour. This is ok for some but you are dependent on the quality of your colour vision, I've never bothered.

Processing

Align and combine each channel seperately then align (but don't combine) the combined channel images. The RGB images will be smaller than the luminence so resize now to match the luminence. I use maxim to do all this but there are plenty of other programs that are around to do all this for you.

Procsssing the luminence

Process in the normal way, stretch the histogram, remove gradients and artefacts, sharpen and reduce background noise. I normally leave star processing until I have brought the LRGB together.

Processig the RGB

This is were the fun starts!

I use photoshop, other programs may work slightly differently but I am sure most are capable of performing similar function. I am using an image of M33 taken this autumn.

Merge the RGB channels before processing


(click to enlarge)

I have opened the RGB (and the lum) and, from the channels palette have selected merge/RGB. This will only work if the images are grey scale. If they are RGB then change under image/mode to greyscale. Choose the appropriate image for each channel. It will ask you if you want to save the individual channels but there is no point so click no to declutter your screen.

Stretching the histogram and adjusting bias

When processing colour images there are 2 colour issues to deal with, bias and balance. The bias relates to discrepancies in back ground colouration. A typical UK colour image is affected by LP which affects background colouration. LP will have a smaller affect on overall colour balance.

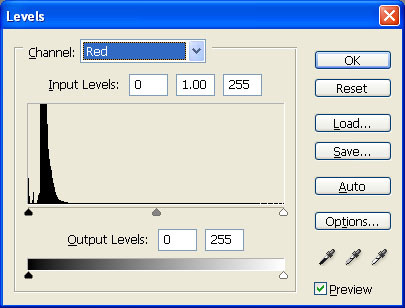

We have to stretch the RGB image using iterative curves and levels. When you bring up levels you find that the black points on the histogram are different. By adjusting the black point for each channel individually you will correct the bias and end up with a neutral grey/black background sky. Here are a couple of screen shots comparing the blue and red histograms


(click to enlarge)


(click to enlarge)

The curves stretch should be done using the RGB master channel but after each curves adjustment you need to adjust the levels in each individual channel.

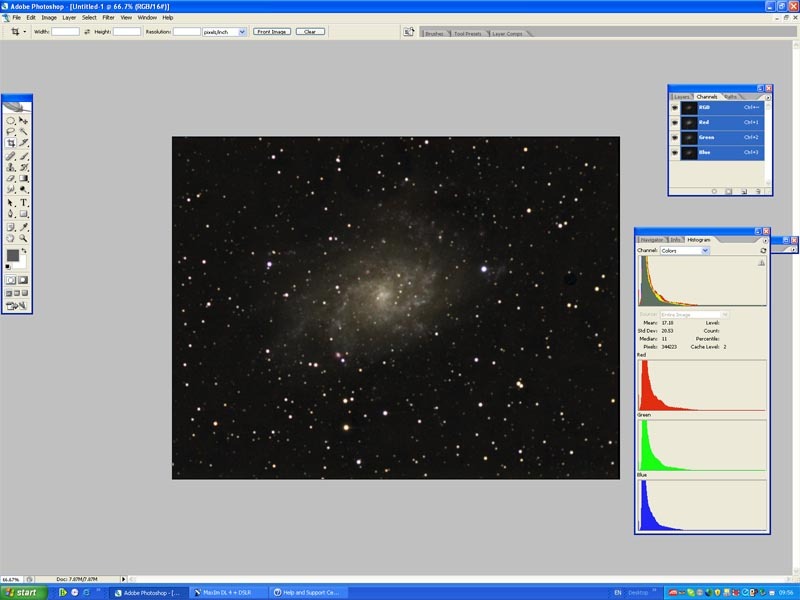

Here is the stretched and bias corrected RGB


(click to enlarge)

Adjusting Colour Balance

Colour balance is a very subjective thing. Fiddling around with the sliders using the colour balance tool can be a frustrating experience and difficult to get "right". Fortunately there is a way of approaching this effectively, provided your image has a good mix of RGB. Bring up the histogram window and choose the colour option. This should then display the histograms for the individual channels. Have a look at each histogram and you will see that there is a point on the right hand side where the curve meets the base line. This is called the pseudo white point (it isn't the true white point because the apparent baseline is actually not quite the bottom of the histogram but is raised slightly be the contribution of the stars). If you rest your cursor over the pseudo white point you can see the brightness level in the information area above. In this image above the red was 120 green 105 and blue 88. The idea is to adjust these white points so that they match using the colour balance tool. PS makes this very easy. ctrl b for colour balance and make sure preserve luminosity is checked. Select highlights (very important because we are adjusting the brightest portions of the target). The blue needs boosting. As you do this you will see the blue histogram move over to the right. Adjust the colour levels until the white points are similar.


(click to enlarge)


(click to enlarge)

The above images show before and after balancing

You can also see the combined histogram with the colours laid on top of each other, the histograms are now nicely balanced but the image is a bit wishy washy.

Increase saturation

The process of combining an RGB with a luminence tends to reduce the colour saturation of the image. Provided you have reasonable signal to noise ratio in your RGB you can get away with boosting the saturation. You have to be careful and watch out for the image becoming noisy, better a smooth image with weak colour than a strong colourful one. It is at this point that you will be glad of those binned subs! It is a bit of a judgement call. Oversaturate slightly, if you can get away with it. If, after combining with the luminance you find that the saturation doesn't look right, go back and try again. Don't be tempted to adjust the saturation of the combined image because you will add more noise.


(click to enlarge)

Now we have good colour balance and adequate saturation however looking that the image you may feel it needs some tweaking. M33 has lots of bright areas made up of young bright blue stars. Also it has red Ha areas. You will have your own ideas on how the image should look so you can now make tweaks to the colour balance to achieve your ideal colour.


(click to enlarge)

Reduce noise

Since the RGB isn't adding detail you should apply some quite heavy noise reduction. It is possible to get away with some global gaussian blurring but I prefer to use Noel's space noise reduction. I find this a bit heavy for normal use, preferring the deep sky noise reduction tool or doing it myself. but for an RGB it works very nicely.


(click to enlarge)

Don't be alarmed at this stage if the image looks a bit underwhelming. Remember it is a resized binned image with no luminence to back it up.

Combining the luminence and RGB


(click to enlarge)

This luminance image has been processed ready for combining. It's mode has to be changed to RGB by going to Image/mode and checking RGB.

Bring up the RGB, select, copy then select the luminence and paste. You will just see the RGB so don't be disappointed! Because I have done some cropping it is necessary to line the images up again despite having aligned them previously. Fortunately there will be no rotation so this is very easy. Change the blend mode to difference and select the move arrow from the tools palette. Click on the image and move around with the mouse. You can make fine adjustments with the cursor keys (make sure you have clicked on the image with the move arrow other wise you will just change the blend mode!). Once aligned the image looks like this


(click to enlarge)

Now comes the magical bit! To combine an RGB onto a luminence we just want to add the colour so change the blend mode to colour and hopefully an extraordinary transformation takes place. For me this step is the most exciting part of astroimaging! If you wanted to do it the other way around and add a luminence to an RGB you would use luminance as the blend mode.


(click to enlarge)

You can now make tweaks to the image in the seperate layers. Often you can see more clearly where a bit of extra sharpening would help. Noise may be creeping in from the RGB layer. You can flatten the image and make further adjustments to the whole image. I have just made a few tweaks to the stars including getting rid of some small blue halos.

here is the final image


(click to enlarge)

I have converted the Fits to tiffs and uploaded them to UK Astronomers so that you can download and have a play. The luminance has been deconvolved using CCDSharp and I have used digital development processing in maxim. It needs further stretching and removal of a few artefacts but not much else.

I hope this was useful. I would be grarteful for feedback or suggestions.

  • Like 9
  • Thanks 3

Share this post


Link to post
Share on other sites

Thats excellent Martin , and i,m sure will be a really big help for those starting out with their thoughts to LRGB, a lot of work put in by yourself as regards to this , even i may use it , well maybe :D,i,m a lazy git , One shot bam wham , but great work Martin

Cheers

Rog :rolleyes:

Share this post


Link to post
Share on other sites

That is an excellent tutorial, Martin - thanks for that.

One question, if instead of a straight luminance image, one was to combine an Ha image what changes to the workflow would be necessary?

Share this post


Link to post
Share on other sites

Very interesting and usefull, thanks very much for this!

One question over binning. If I BIN my RGB Data in Maxim is makes it half the size, how does this then get merged in with the unbinned Lum data?

Share this post


Link to post
Share on other sites

Thanks for yet another brilliant Primer

must admit I got lost as I have never done any processing before but I got the gist of it and I think eventually I could use it in its entireity but would love to be shown it live by someone or maybe one day someone will actually do a whole video of the process

not that your work was in anyway not totally respected its just I am slow on the uptake with things its only a confidence thing I guess

cheers mate :hello1:

Share this post


Link to post
Share on other sites
i always use my ha as the luminance anyway Steve .

Thanks Roger - does this mean that you never take a 'filterless' luminance?

Share this post


Link to post
Share on other sites

One question, if instead of a straight luminance image, one was to combine an Ha image what changes to the workflow would be necessary?

You can use any image as a luminance Steve. Certainly Ha makes a great luminance with emission nebs. I've even used the blue combine as a luminence (an image of the iris neb) Don't know if you create a luminance channel from your colour images but it is a good way of enhancing detail without introducing noise. You can then blur the RGB a little

One question over binning. If I BIN my RGB Data in Maxim is makes it half the size, how does this then get merged in with the unbinned Lum data?

It's mentioned Blinky. You have to resize the RGB before merging. I normally resize before processing the RGB

must admit I got lost as I have never done any processing before but I got the gist of it and I think eventually I could use it in its entireity but would love to be shown it live by someone or maybe one day someone will actually do a whole video of the process

There is stuff in the primer which assumes you understand how to stretch a histogram and so on. This is covered by other primers in this section. Unfortunately the images got lost in an SGL crash. I haven't had time to reload them but the primers can be found in the "resources" section of my website www.astropixels.co.uk

I have played around with video tutorials. The software was ok but I struggled to keep the sound in sync. Also the files are massive. I might have another go some time.

Thanks for the positive comments guys.

Share this post


Link to post
Share on other sites

thanks for another great tut martin.. not got a cam that is capable of this yet but am gonna be looking at upgrading my imaging kit in the next couple of months.. was wondering about the colour/mono pros and cons and the LRGB thing...

:hello1:

Share this post


Link to post
Share on other sites

was wondering about the colour/mono pros and cons and the LRGB thing...

Most of the processing stuff here applies just as much to colour chips as it does to mono. You don't need a filter wheel with colour and you don't have to merge the channels (which is a very easy job). On the other hand mono is more flexible.

Share this post


Link to post
Share on other sites

A Very good primer that.

I'll have a re read of it later.

The weird thing is, although it should not work, using the one image and converting it to individual channels also seems to work. Though not in all cases.

I agree Ha also works, i have imaged using that in place of the L filter as well :-)

Share this post


Link to post
Share on other sites

Are there any tutorials, hints about LRGB without Photoshop? (like with the GIMP and other free tools) :)

Share this post


Link to post
Share on other sites

Hi Martin - Great LRGB Primer, many thanks for taking the time to put it together.

One thing regarding application of levels to RGB images is how Adobe sets-up PS initially on installation. To avoid clipping the RGB channel components its best to open the levels dialogue (Ctrl L) click on 'options' and in the next dialogue set as screen shot - save as defaults. Then when you go back to the levels screen and if you look at each of the RGB channels , each has been clipped as set in the options dialogue. It then means you can simply select auto levels to get the same results...

Francis


Edited by fwm891

Share this post


Link to post
Share on other sites

Thanks, Martin, for this primer which is excellent.

It answered a basic question I had about exposure times for LRGB components of an image.

I was just wondering, though, if using Ha as the luminance channel, would you still match the RGB exposure times to - in this case - the Ha exposure time? I ask because the Ha signal is obviously much fainter than a standard L channel with just an IR block... I'm getting ready to capture the RGB on my Horsehead project (4hrs of Ha @f/6.7) and your primer has convinced me to bin the RGB and to use the 1:1:1.4 ratio but I'm just wonder if I should be shooting 60mins:60mins:90mins binned 2x2 to match the Ha or less...

Also, when shooting the RGB (and particularly the B channel) is it best to use the same length subs or more subs of shorter length? i.e. I have 24 x 600s subs of Ha, should I go for 24 x 150s subs of R and G or 6 x 600s subs? Likewise should I capture 40% more subs on the B channel than the R and G or 40% longer subs? The former obviously has the advantage of not needing another set of darks but that's not really a problem...

Or is this all personal preference and / or experimentation and / or target specific?

Thanks in advance!

Share this post


Link to post
Share on other sites

Thanks a bunch for this! I'm about to try it out with some images of Cygnus Loop.

I learned radio astronomy before optical, so it's all pretty new to me. :) Still figuring it all out.

Share this post


Link to post
Share on other sites
tumblr_lz75vykPNg1qjdgxzMy LRGB composite of M20 turned out AMAZING thanks to your tutorial! I actually used Color Dodge for the Luminosity layer to get a better result. This is so much fun :)

Share this post


Link to post
Share on other sites

THANK YOU Martin!

I'm just about ready to get started with your guide to hand!

Sent from my mobile using TapaTalk (so please excuse bad grammar & spelling!) :-)


Share this post


Link to post
Share on other sites

This has been really useful in doing my first LRGB but struggled on one point.

With L/R/G/B all open, all Gray/all 16 bit, I couldn't open "Channel Merge" it was still Grayed out. There is probably a simple answer but I couldn't find it.

Any help much appreciated.

Rgds

Ian S.

Share this post


Link to post
Share on other sites

under window make sure you have channel ticked then on the right tool bar click the channel tab then on the right hand drop down you should have the merge channels... available.

Share this post


Link to post
Share on other sites

Very strange......sometimes I can use the rgb merge and other times if I change a file it is greyed out and I had to progress by copying/pasting into new rgb file.

Great Primer, very useful to an rgb beginner.

Many thanks

Ian S.

Share this post


Link to post
Share on other sites

Ian.

In CS5 I found that I have to have only 3 images open. If I have the L image (or any fourth image) open the merge channels is greyed out.

Sent from my HTC Desire S using Tapatalk 2

Share this post


Link to post
Share on other sites

Neil, you are right, just tried it.With the L open in PS the Merge Channel is Greyed out.

Rgds

Ian S.

Share this post


Link to post
Share on other sites

Odd, I have CS5 and if I have 4 open, the merge channels option is available and offers 3 channel RGB or 4 channel merge.

Share this post
